Metal Wear Resistance Steel Plate Ms 3.0mm Ss400 Q235B A36 1200mmx2400mm

Ask Lasest Price
Brand Name :	Wear Resistant Steel
Model Number :	WNM360/400/500
Certification :	ISO, AISI, ASTM, GB, EN, DIN, JIS
Price :	Contact Us
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	5000 Ton/Tons per Month
Delivery Time :	Within 7-10 Working Days

Add to Cart

Product Details
Company Profile

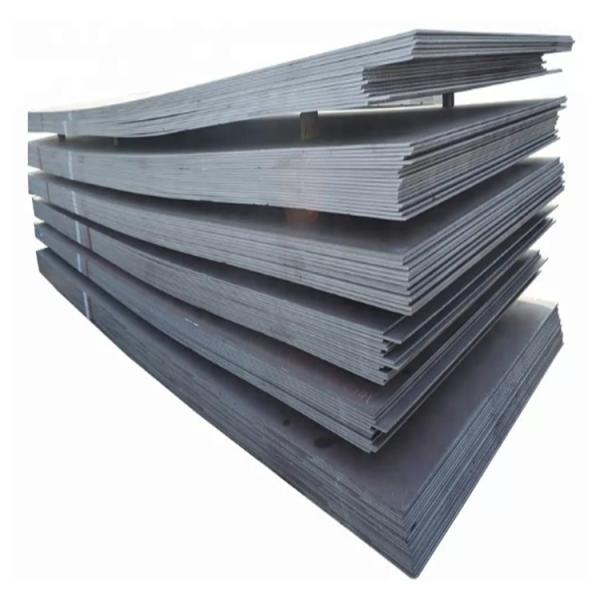

Metal Wear Resistance Steel Plate Ms 3.0mm Ss400 Q235B A36 1200mmx2400mm

Hot Rolled Ms Steel Thick 3.0mm Ss400 Q235B A36 1200mm*2400mm Iron Plate Medium-Thickness Wear Plate Carbon Steel Sheet

AR400, AR450 and AR500 plate are abrasion resistant (AR) quenched and tempered alloy steels. This grade of alloy steel exhibits high abrasion resistance and hardness. The addition of carbon and manganese coupled with quenching and tempering increase the hardness of the steel and create a durable, impact-resistant surface. However, as hardness increases, formability and the ability to easily machine and weld the alloy decrease. Special machining processes are needed to prevent work hardening and chipping during manufacturing.

Standard: WJY030-2010
Grade: WNM360/500/400
Place of Origin: China (Mainland)
Brand Name: Wu Gang
Type: Steel plate Surface treatment: Hot rolled

Specifications:
Steel Plate WNM360/400/500
1 Grade: WNM360/400/500
2 T: 6-700mm; Length: 3000-12000mm; W: 1500-4000mm;
3 Delivery time: Average Period in 30 days

Wear Resistant Steel Plate Specification
Standard Grade	DIN: XAR300,XAR400, XAR450, XAR500, XAR600, DILLIDUR400V,DILLIDUR450V,DILLIDUR500V; X120Mn12; 1.3401; SSABWELDOX700,WELDOX900,WELDOX960; NF: FORA400,FORA500,Creusabro4800,Creusabro8000; EN: QUARD400,QUARD450,QUARD500 ; RAEX320,RAEX400,RAEX450,RAEX500; DUrostat400,DUrostat450,DUrostat500; JIS: JFE-EH360,JFE-EH400,JFE-EH500, WEL-HARD400, WEL-HARD500; SUMIHARD-K340,SUMIHARD-K400,SUMIHARD-K500 GB: NM360,NM400,M450,NM500,NM550, NM600,NR360,NR400,B-HARD360,B-HARD400,B-HARD450,KN-55,KN-60,KN-63.
Thickness	2-300mm (2-100mm usually used)
Width	1000-3000mm (1000-2200mm usually used)
Length	1000-12000mm or as your request
Surface	Clean, finishing,blasting and painting according to customer requirement
Delivery States	Hot-rolled, Controlled rolling, Normalizing, Annealing, Tempering, Quenching, N+T, Q+T,and other delivery states are available as required
Certificate	API,ISO,SGS,BV,CE etc
Quality	MTC will be provided with goods, third part inspection is acceptable, for example BV,SGS.
Package	Standard export seaworthy package,suit for all kinds of transport,or as required.

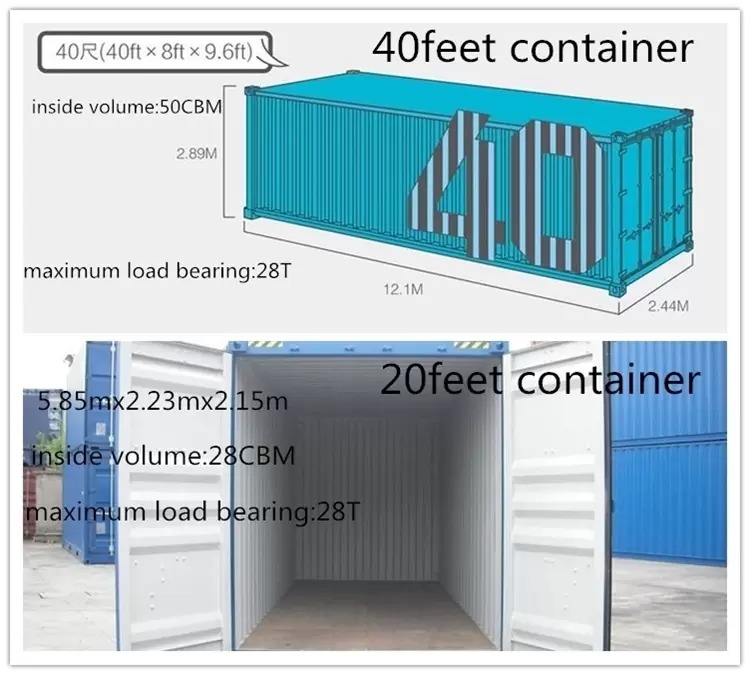

ContainerSize	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High)
ContainerSize	40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High)
Trade term	Ex-Work,FOB,CNF,CFR,CIF,etc
Application	Widely used in a variety of architectural and engineering structures,such as 1. metal constructions such as buildings,bridges,ships; 2. transmission tower, reaction tower; 3. lifting transportation machinery; 4. industrial furnace;boilers 5. container frame, warehouse goods shelves, etc

Chemical composition and mechanical properties

Material	C	Si	Mn	P		S	Cr		Mo	Cu		Ni	B
XAR400	0.20	0.80	1.50	0.025		0.010	1.00		0.50	--		--	0.005
XAR450	0.22	0.80	1.50	0.025		0.012	1.30		0.50	0.30		--	0.005
XAR500	0.28	0.80	1.50	0.025		0.010	1.00		0.50	--		--	0.005
XAR600	0.40	0.80	1.50	0.025		0.010	1.50		0.50	--		1.50	0.005
Material		Yield StrengthReh MPa			Tensile StrengthRm MPa			Elongation			BH(Brinell Hardness)
XAR400		1150			1300			≥12			360-440
XAR450		1200			1350			≥10			410-490
XAR500		1500			1600			≥9			450-530
XAR600		--			--			--			≥550
