Home > Stainless Steel Sheet Plate >

ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l

Shandong TISCO Ganglian Stainless Steel Co,.Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l from wholesalers

    Buy cheap ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l from wholesalers
    • Buy cheap ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l from wholesalers
    • Buy cheap ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l from wholesalers
    • Buy cheap ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l from wholesalers

    ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l

    Ask Lasest Price
    Brand Name : Stainless Steel Sheet
    Model Number : 200 Series, 300 Series, 400 Series
    Certification : ISO, AISI, ASTM, GB, EN, DIN, JIS
    Price : Contact Us
    Payment Terms : T/T L/C and Western Union etc.
    Supply Ability : 5000 Ton/Tons per Month
    Delivery Time : Within 7-10 Working Days
    • Product Details
    • Company Profile

    ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l

    For ASTM A240, type 316 and 316L is really a chromium dime austenitic steel, Element molybdenum addition can enhances corrosion resistance of stainless, which can be the main factor that 316/316l much more anti-corrosive than 304/304l. When 316L steel of low carbon content is only to some extent higher than 316 steel on strength level. So sometimes class 316l is almost the same as 316 grade. Another substantial improvement, 316l can supply for weld treatment as it comprises of lower carbon. Type 316 metal steel is austenitic steel that differs from grade 304 by adding of molybdenum, which increases its resistance from chemical type corrosion and marine environments. Every one of these materials excel in harsher atmospheres, where pitting and crevice corrosion and rust may appear through chloride coverage or solvents found in refinement. 316/316L dual certified stainless piece is an "18- 8" austenitic chromium- nickel material modified by digging in molybdenum, which greatly increases the corrosion and rust resistance as well as the mechanical properties at elevated conditions. 316/316L is non- permanent magnetic in the annealed condition and not hardenable by heat treatment. 316/316L is somewhat more immune to atmospheric and general corrosive conditions than any of some other standard stainless steels. The addition of molybdenum offers an extra check of corrosion resistance causeing this to be class ideal for applications involving severe corrosive conditions such as operation in the chemical industries and marine atmospheres. 316 stainless material plate is a higher common use stainless steel than 304&304L, it has 2. 0 to three. 0% of Molybdenum content which offers better overal corrossion immune than 304 stainless steel. Specifically in chloride environments it has great resistance to pitting and crevice corrosion.


    Product Description


    Standard:JIS, AiSi, ASTM, GB, DIN, EN, JIS, AISI, ASTM, GB, DIN, EN, etc.Place of Origin:Jiangsu, China
    Brand Name:TISCOModel Number:201 304
    Type:WeldedSteel Grade:300 Series
    Application:Industry/ConstructionCertification:ISO, AISI, ASTM, GB, EN, DIN, JIS
    Welding Line Type:ERWTolerance:±1%
    Processing Service:WeldingGrade:SS 304 SS316l
    Product name:Stainless Steel SheetKey Word:Schedule 10 Stainless Steel Sheet
    Surface:PolishedPrice Term:CIF CFR FOB EX-WORK
    MOQ:1 TonTechnique:Hot Rolled , Cold Rolled , Extrusion
    Payment:L/C,T/TEdge:Mill Edge Slit Edge
    Port:Shanghai, China


    Specification

    Product NameStainless steel sheet / plate
    TypeCold Drawn or Hot Rolled
    Thickness0.1-300mm
    Width1000, 1219, 1500, 2000, 2500, 3000mm etc.
    Length1000, 1500, 2438, 3000, 5800, 6000, 9000, 12000mm etc.
    StandardASTM JIS AISI GB DIN EN
    Surface FinishedBA, 2B, NO.1, NO.4, 4K, HL, 8K
    ApplicationIt is widely used in high-temperature and electric industry, medical devices, construction, chemistry, food industry, agriculture,
    and ship components.
    It also applies to food and beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts,
    springs, and screen mesh etc. .
    CertificationCE, ISO, SGS, BV
    TechniqueHot rolled or cold drawing
    EdgeMill Edge / Slit Edge
    QualitySGS Inspection
    Grade(ASTM UNS)201 202 301 304 304L 321 316 316L 317L 347H 309S 310S 904L S32205 2507 254SMOS 32760 253MA N08926 etc.
    Grade (EN)1.4301, 1.4307, 1.4541, 1.4401, 1.4404 ,1.4571, 1.4438, 1.4539, 1.4547, 1.4529, 1.4562, 1.4410, 1.4878, 1.4845, 1.4828, 1.4876,
    2.4858, 2.4819
    Main marketAsia/Europe/ South America
    Brand NameTISCO
    Delivery timeWithin 7-10 Working Days
    Port of LoadingShanghai China
    Price TermsCIF CFR FOB EX-WORK
    Export PackingWaterproof Paper, Steel Strip Packed and other Standard Export Seaworthy Package, or customized package
    Supply Ability5000 Ton/Tons per Month
    Payment TermsT/T L/C and Western Union etc.

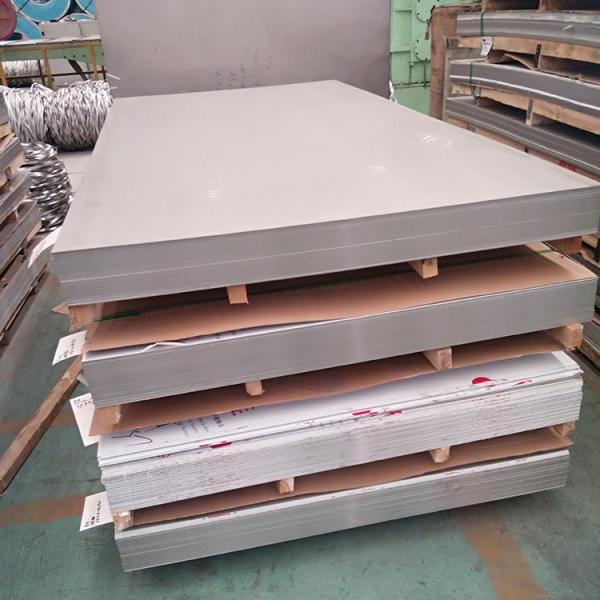

    Product Display

    We have stainless steel plate, diamond plate, 2B & 2D stainless steel sheet, stainless steel polished sheet, stainless steel flat &expanded sheet, and perforated stainless steel sheet and other plates.

    A.I.S.I.
    U.N.S.
    Characteristics
    End-Use
    301
    S30100
    Able to attain tempers from 1⁄4 through full
    hard, extra full hard by cold rolling.
    Withstands severe forming in annealed
    condition.
    Kitchen sinks, Automotive wheel
    covers. Toaster springs, Seat belt
    buckles
    303
    S30300
    Highest machinability rating among the
    300 series. Forming and welding are not
    recommended.
    Nuts and bolts, threaded rods,
    Fittings.
    304
    S30400
    Excellent corrosion resistance and suitable
    for deep drawing applications when Nickel
    content is increased. Carbon content
    .08% max.
    Food Industry, Chemical Industry,
    Deep drawing applications, Aesthetic
    application.
    304L
    S30403
    Same characteristics as 304 with a lower
    carbon content .03% max. Used when
    post weld annealing is impossible. The
    lower carbon content reduces carbide precipitation in the welded zone.
    Large fabricated equipment.
    316
    S31600
    Molybdenum bearing alloy with better
    overall corrosion resistance than 304 and higher creep strength at elevated temperatures.
    Marine coastal environments, Pulp
    and paper industry, Chemical and
    petrochemical Industry
    316L
    S31603
    Same characteristics as 316 with a lower Carbon content .03 max. Good corrosion resistance in high temperature intermittent
    service. Used when post weld annealing is impossible. The lower carbon content
    reduces Carbide precipitation in the welded zone.
    Large fabricated equipment.
    317L
    S31703
    Higher Molybdenum content than 316 for
    better corrosion resistance. Carbon con
    tent .03% max.
    Corrosive environments. Chemical
    and petrochemical industries.
    309
    S30900
    309S
    S30908
    Heat resisting alloy with good corrosion
    resistance. High tensile and creep
    strengths as well as at elevated temperatures. 309S has a lower Carbon content
    .03 max.
    Furnace parts, Baffles, Cement kiln
    chains. Exhaust manifold butterfly
    valves.
    310
    S31000
    310S
    S31008
    Improved characteristics over 309 and
    better scaling resistance in intermittent
    elevated temperatures. Grade 310 has a
    low co-efficient of expansion.
    Furnace parts, Carburizing boxes,
    Heat exchangers, Oil burner parts.


    Why Choose Us


    Quality ASTM 316L Stainless Steel Sheet Boiler Plate For Construction 300mm SS316l for sale
